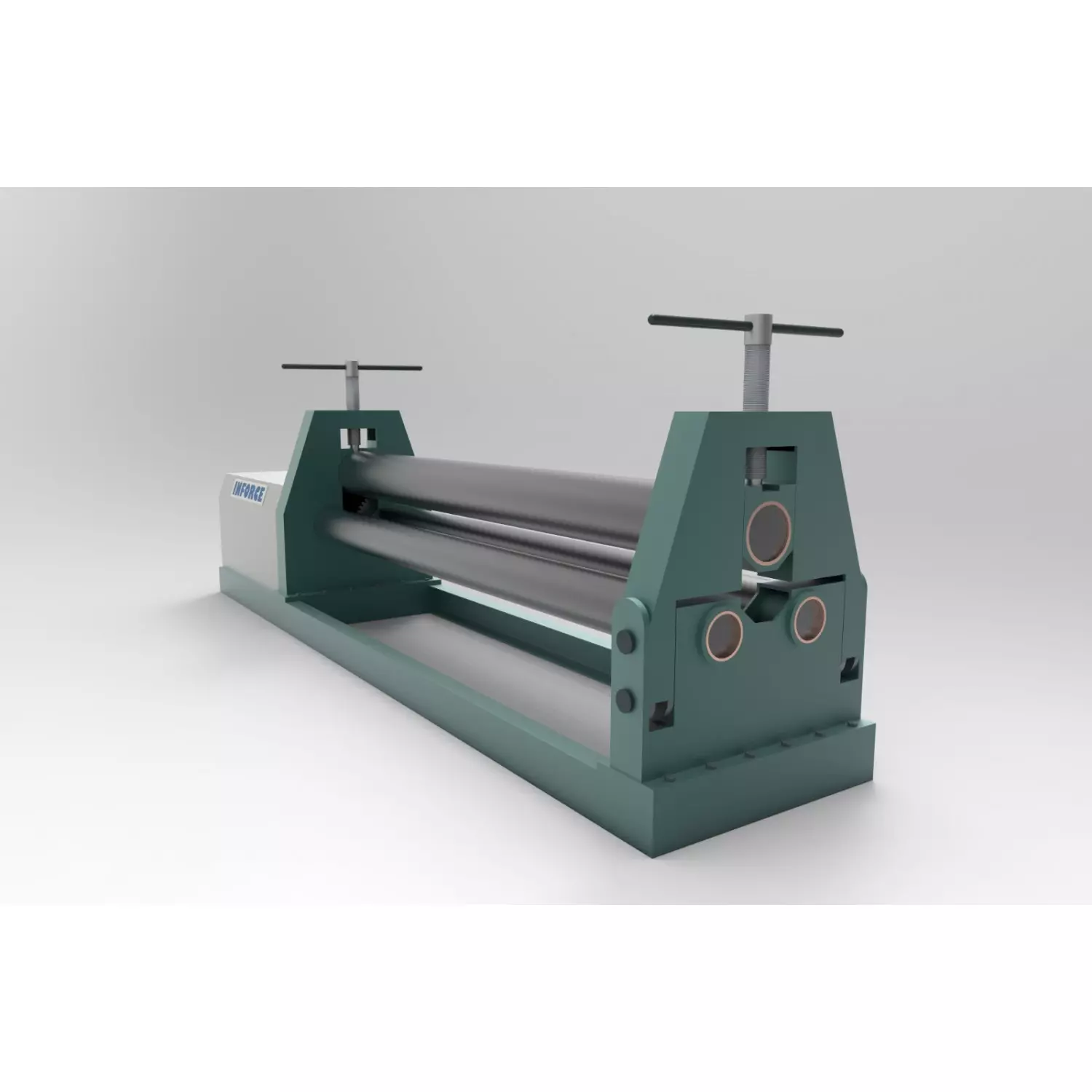

Mechanical Plate Bending Machine

Mechanical Plate Bending Machine is one of the most cost effective solutions for a small fabrication workshop. It is a 3 Roll Pyramid type Plate Bending Machine with planetary gearbox.

Mechanical symmetrical rolling machine is a kind of three roller sheet rolling machine. The upper roll moves vertically in the center between the two lower rolls. The two lower rolls rotate and provide the plate materials with torque.

The Pyramid Type Mechanical plate bending machine  consists of two parts, the operation part and the transmission part. The transmission part is welded at the whole bottom pallet. It features compact structure, easy operation and convenient maintenance. Mechanical Plate rolling machine is mainly used in the process of cold working.  The mechanical plate bending machine is widely used in boiler, chemical industry, mining, construction, shipbuilding and other machinery industries.

Mechanical Plate Rolling Machine Feature
Mechanical Plate Bender Features :

Solid Rolls of EN 8/9 with material test certificates
Epicyclic Planetary Gearbox for extra torque
Spherical roller bearings on all 3 roll shafts.
M C B to protect machine against short-circuit and over-loading.
Emergency Stop Switch is fitted on control panel to avoid any Accident.
Digital Readouts to Check the roll position
Push Button Movable Remote Control
Heavy duty reinforced welded steel frame.
Mechanical Plate Rolling Machine standard Accessories
Push Button Remote Control
Epicyclic Planetary Gearbox for extra torque
Solid Rolls of EN 8/9 with material test certificates
Movable Operating Desk with Touch Pad & Keyboard
Solid Rolls of EN 8/9 with material test certificates
Epicyclic Planetary Gearbox for extra torque
Optional Accessories of Sheet Bending Machine

Extended Roll Shafts for profile and pipe bending.
Material Feeding Table
Side support for bending large diameter shells
Hydraulic Swing Arm Opening
Automatic Lubrication System
